Condensing header is one of the important components in air conditioning systems. Fluorine in automobile air conditioners is compressed by a compressor to produce high-temperature and high-pressure liquefied gas, which is condensed by a condenser to become a low-temperature and high-pressure liquid, which then flows into a header to collect.D-type header aluminum tube is an important type of condensation header.

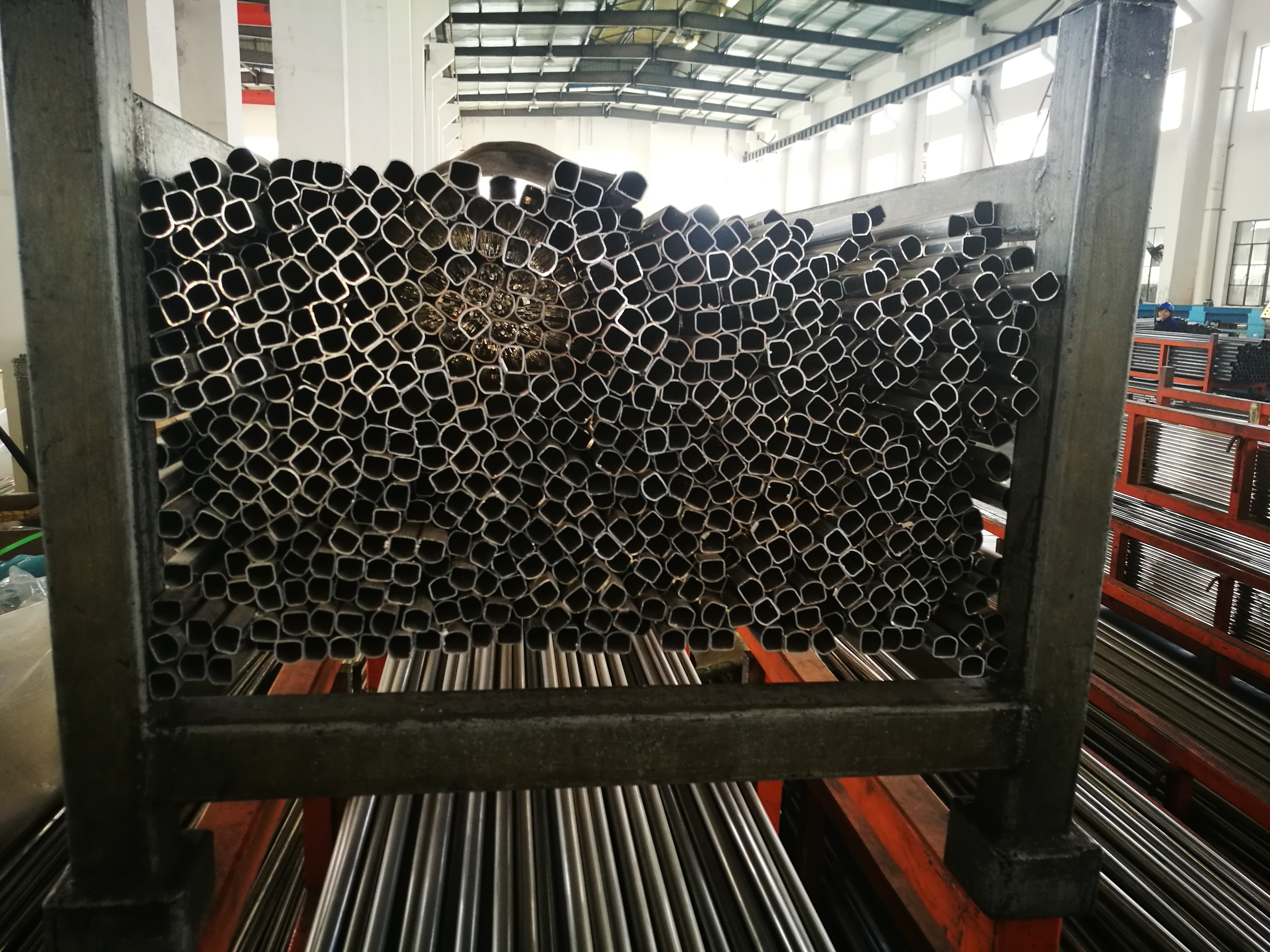

The introduction of D-type header aluminum tube
Composite: single composite material, double composite material
Multilayer: 4045, 4343, 7072
State: H14; Compound rate: 10 ± 2
Core layer: 3003, 3305
Process: high frequency welding, cold drawing
Size: 20.4 × 18mm
Wall thickness: 1-2.5mm
Main performance of D-type header aluminum tube: The bursting pressure of the pipe is more than 15MPa, and it is applied to the products whose working pressure requirement is less than 2.5MPa.
Product application of D-type header aluminum tube : Automotive air conditioner cooler header, parallel flow condensation, evaporator header, warm water tank header, new energy vehicle
