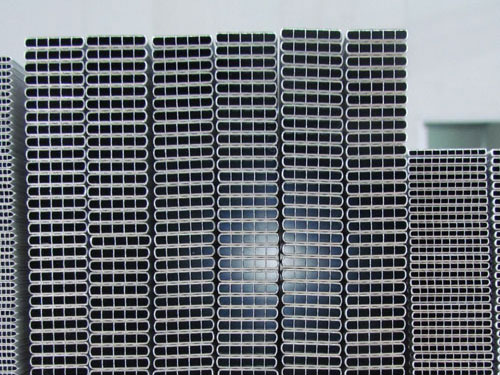

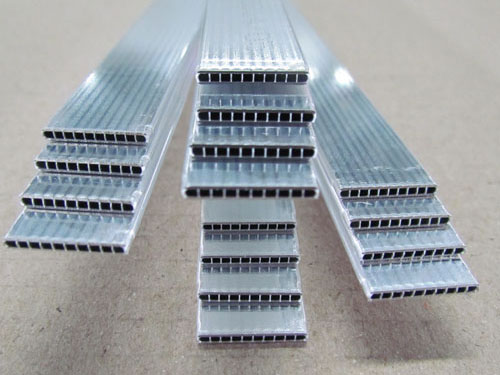

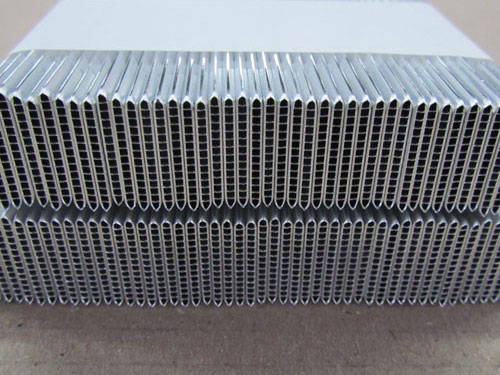

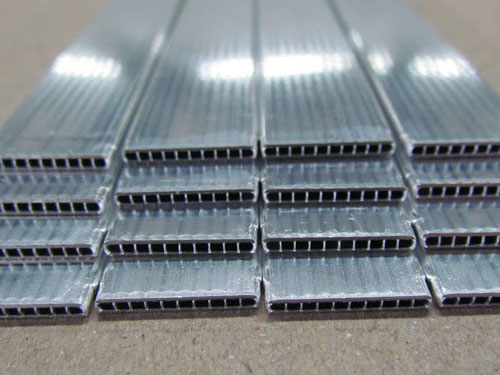

Product Name: Parallel Flow Aluminium Flat Tube
Product Alloy: 1100, 1050, 1060, 1070, 3102,etc
1, Product characteristics of Parallel Flow Aluminium Flat Tube
1). light weight
2). Good thermal and electrical conductivity
3). Good corrosion resistance
4). Good forming and bending properties
5). Compliance with standard ROHS
6). High recycling value
7). Small deviation range
8). High surface quality
2.Application scope of Parallel Flow Aluminium Flat Tube
Parallel Flow Aluminium Flat Tube is used for Automotive air conditioning, civil air conditioning (condenser, evaporator)etc.
3. Product Alloy of Parallel Flow Aluminium Flat Tube
1xxx system, such as 1100,1050,1060,1070
3xxx system, such as 3102
4.Specification of Parallel Flow Aluminium Flat Tube
Width: 6mm-40mm height: 0.8mm-8.0mm
Wall Thickness: Over 0.12
Holes: 2-35

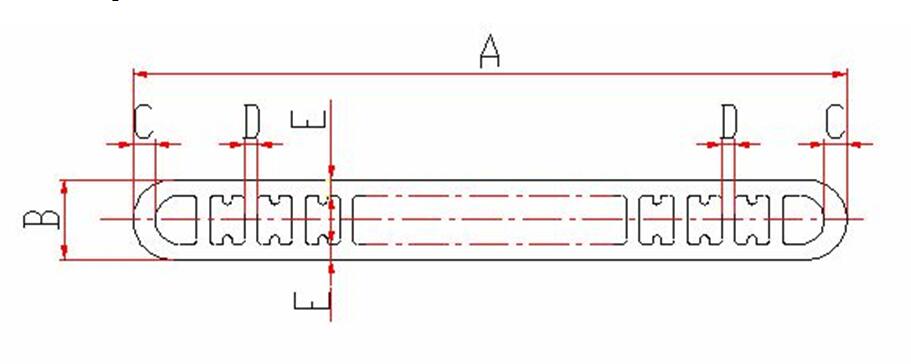

Section diagram
| Figure Number | Size | Allowable Deviation | Material(Alloy) | Temper |
| A | 6～40 | ±0.05 max | 1050/1050A/1060/1060A/1070/1100/3102 | H112 |
| B | 0.8～8.0 | ±0.03 max | ||
| C | 0.40 min | ±0.08 max | ||
| D | 0.20 min | ±0.05 max | ||
| E | 0.25 min | ±0.05 max | ||
| Length | According to customer's requirement (fixed size and material) | |||
