The intercooler is an important component of the supercharger system. It is a turbocharged accessory and its function is to improve the engine's ventilation efficiency. Whether it is a supercharged engine or a turbocharged engine, all need to be supercharged. The intercooler is installed between the gas manifolds, and the materials used in the intercooler are mostly rectangular square tubes.
1, The type of Intercooler rectangular tube:

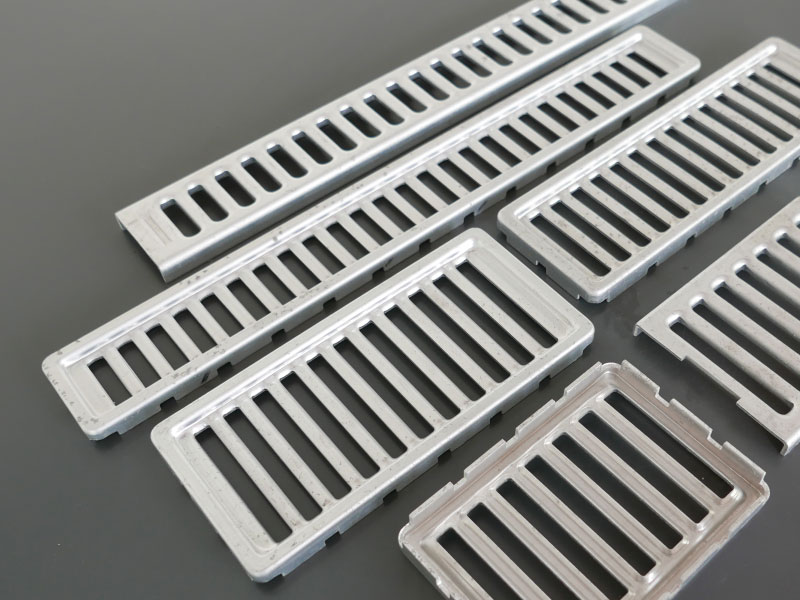

1), Intercooler motherboard
Cladding type: single Cladding material, double Cladding material
Cladding layer: 4045, 4343, 7072 anti-corrosion layer, zinc can be added
Process: stamping

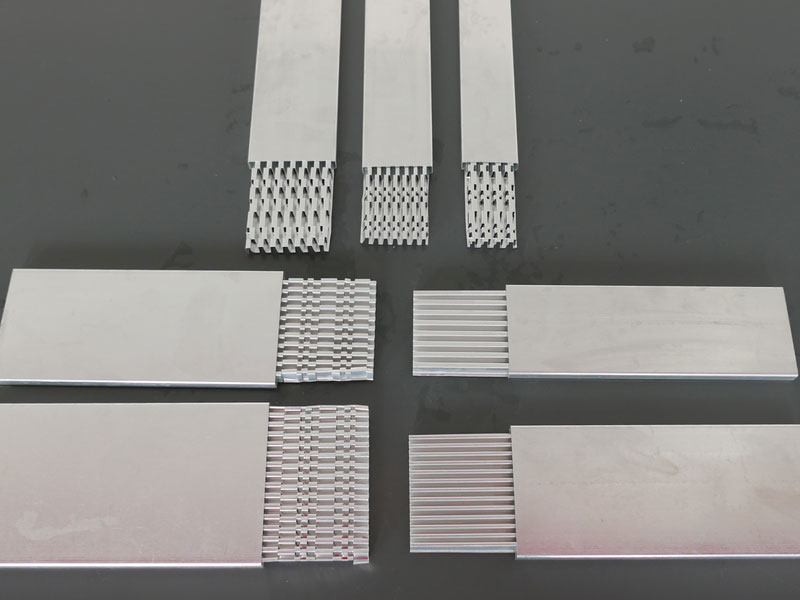

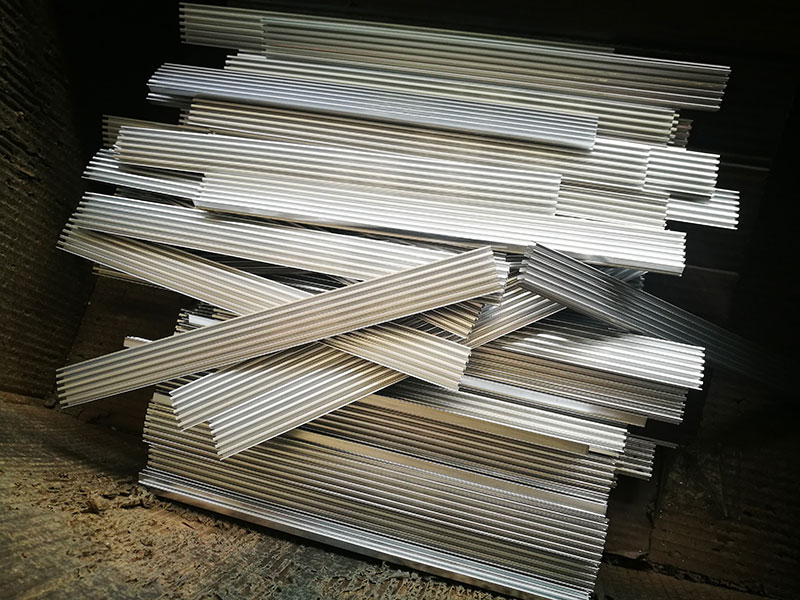

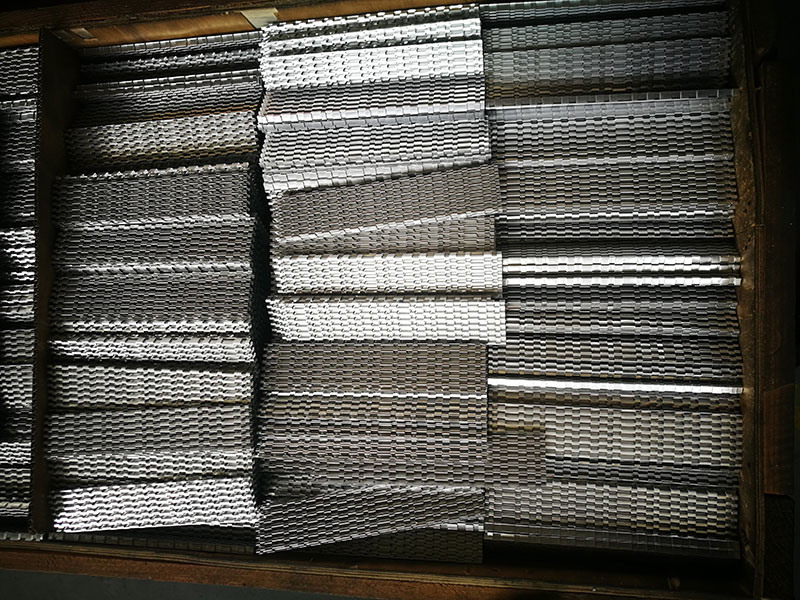

2), Intercooler finned tube
Cladding type: single Cladding material, double Cladding material
Cladding layer: 4045, 4343, 7072 anti-corrosion layer, zinc can be added
Process: high frequency welding, cold drawing

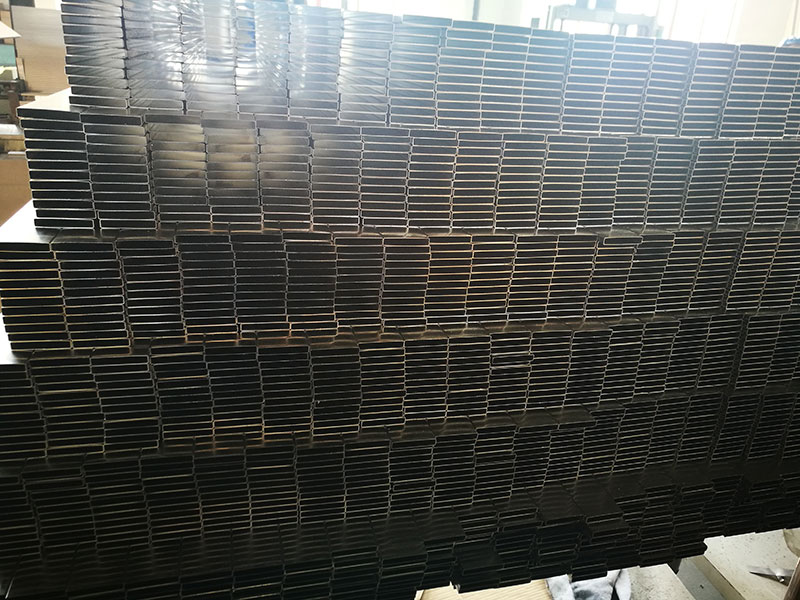

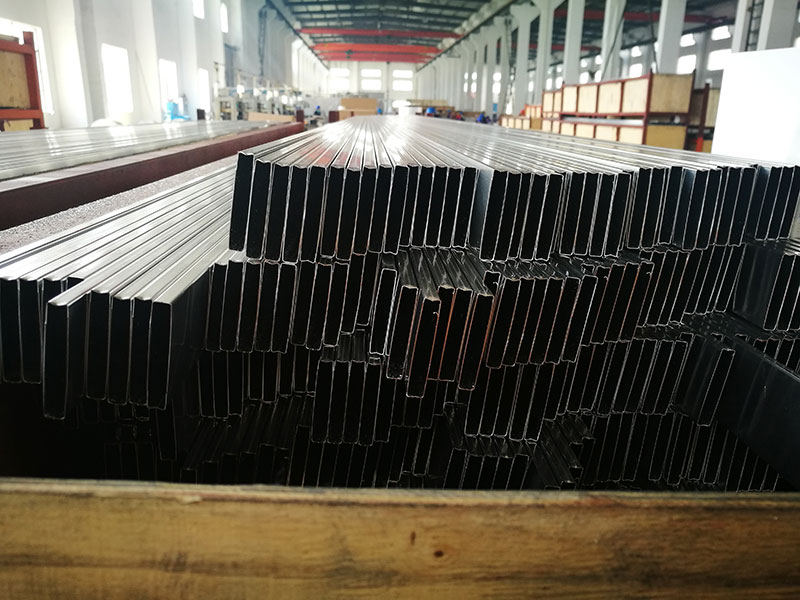

3), Intercooler square tube
Cladding type: single Cladding material, double Cladding material
Cladding layer: 4045, 4343, 7072 anti-corrosion layer, zinc can be added
Process: high frequency welding, cold drawing
2, The introduction of the intercooler material (internal cooler inner fin tube, intercooler main side plate)
Cladding type: single Cladding material, double Cladding material
Cladding layer: 4045, 4343, 7072 anti-corrosion layer, zinc can be added
Material Temper: H24;
Cladding rate: 10±2 or according to customer requirements
Core layer: 3003, 3005
Production Process: high frequency welding, cold drawing
Wall thickness: 0.08-1.2mm
Appearance: can be customized according to customer requirements,
3,The Product Characteristics of Intercooler rectangular tube
1). light weight
2). easy welding
3). Good corrosion resistance
4). Good Voltage Resistance
5). Compliance with standard ROHS
6). High recycling value
7). Small deviation range
8). High surface quality
4, The usage of Intercooler materials:
Intercooler materials (Intercooler rectangular tube)are mainly used in automotive intercoolers.

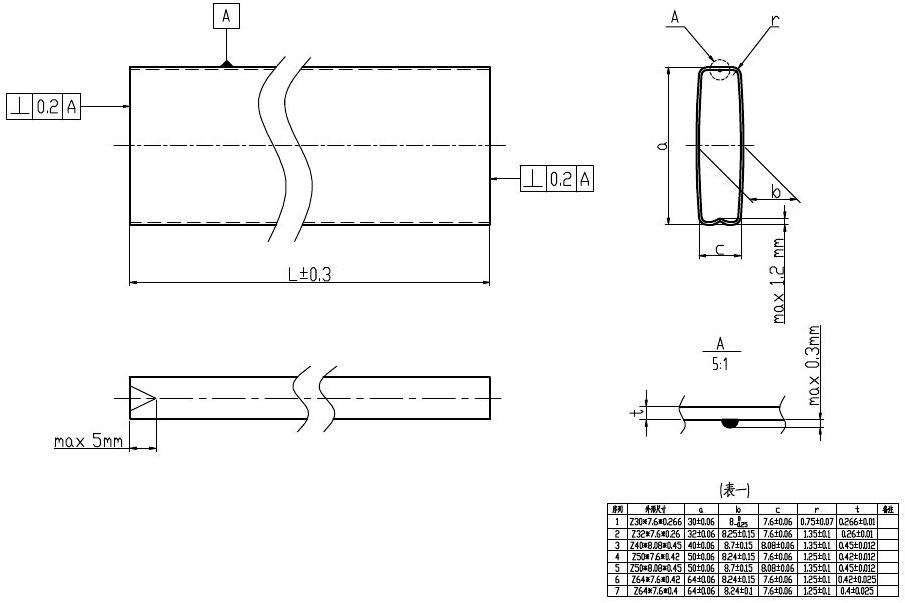

5,The tech requirements and common dimensions of the Intercooler rectangular tube are shown as below:
1).The cutting end face burr does not exceed 0.1mm,and the inner wall weld line height does not exceed 0.2mm
2).Cutting end face angle 90°+/-2
3).The inner and outer surface of the pipe should be clean and free of foreign matter such as oil,dust and aluminum chips;no defects such as pressure pits,bumps,and scratches are allowed.
4).The length and material of the pipe are customized according to customer’s requirements
5).The existing specifications of our company are shown as below table
