Condenser Header Pipe are one of the important components in air conditioning systems. The fluorine in the automobile air conditioner is compressed by the compressor to generate high-temperature and high-pressure liquefied gas, which is condensed by the condenser and then becomes a low-temperature and high-pressure liquid, and enters the collector tube.
1, The type of Condenser Header Pipe (Cladding Aluminium Round Tube)
1),Cladding Round Condenser Header Pipe 2),Punched Condenser Header Pipe
Cladding type: Single Side Cladding material, Double Sides Cladding material
Outer diameter: 9-61mm
Wall thickness: 1-3.0mm
2, Introduction of Condenser material (Condenser Header Pipe)

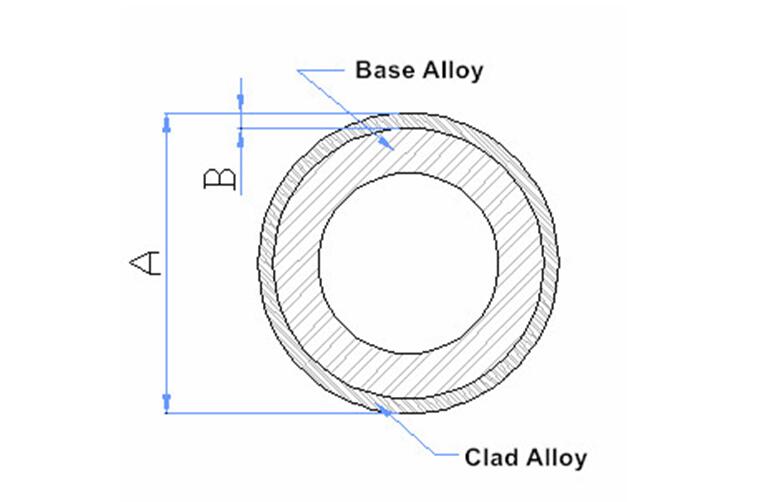

Cladding type: Single Side Cladding material, Double Sides Cladding material
Cladding layer: 4045, 4343, 4043,7072 and other anti-corrosion layers, can be added with zinc as needed,
Material Temper:M,H14,H16,H18,or according to customer requirements;
Cladding rate: 10±2 or according to customer requirements
Core layer: 3003, 3305,6063,etc
Outer diameter: 9-61mm
Process: High frequency welding
Wall thickness: 1-3.0mm
3.The Characteristics of Condenser Header Pipe (Cladding Aluminium Round Tube)
1). light weight
2). easy welding
3). Good corrosion resistance
4). Good Voltage Resistance
5). Compliance with standard ROHS
6). High recycling value
7). Small deviation range
8). High surface quality
4. The Usage of the Condenser Header Pipe (Cladding Aluminium Round Tube):
The Condenser Header Pipe (Cladding Aluminium Round Tube) is mainly used in condensers, oil coolers, including automotive refrigerators, new energy vehicles, home appliance air conditioners, construction machinery, spacecraft mooring and other heat exchanger cores.
5, The tech requirements and common dimensions of the Condenser Header Pipe (Cladding Aluminium Round Tube) are shown below:
1),Weld width:≤2mm;Weld line height≤0.08mm
2),Cutting end face angle 90°+/-2,no burrs.
3),The inner and outer surface of the pipe should be clean and free of foreign matter such as oil,dust and aluminum chips;no defects such as crushing or scratching are allowed;
4),Straightness is ≤0.5mm/500mm
5),The length of the pipe,whether the end face is chamfered and the material are in accordance with customer requirements

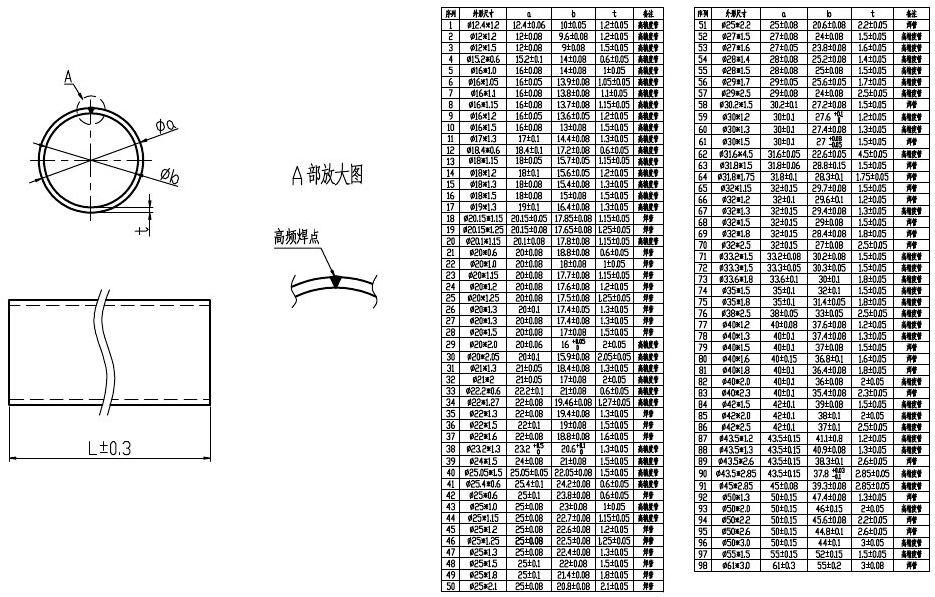

6)The specific specifications of our company are shown as below:
