The Radiator aluminium flat tube refers to a flat aluminium tube applied to the radiator. The radiator made of the aluminum flat tube takes up small space, is light in weight, is convenient to install and maintain, has good pressure bearing performance, and can be used for various heat mediums.
1, The type of Radiator material:
1), Radiator motherboard

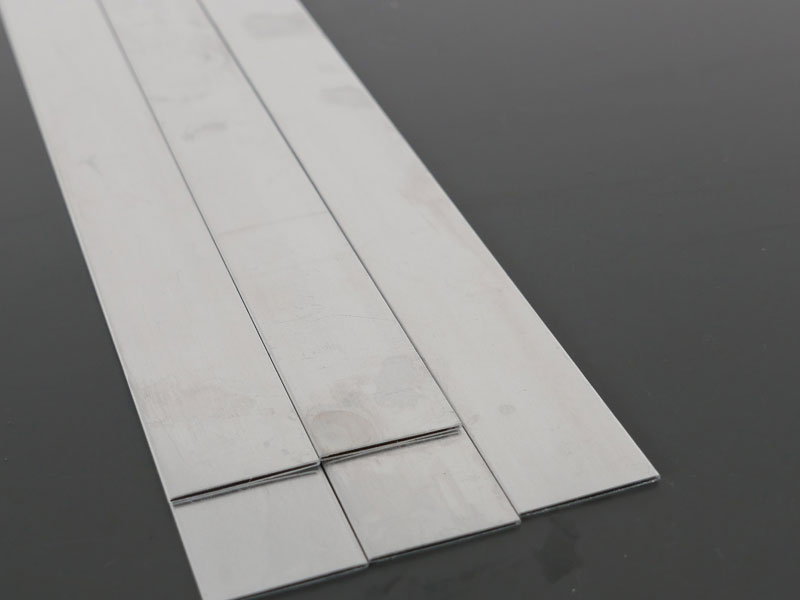

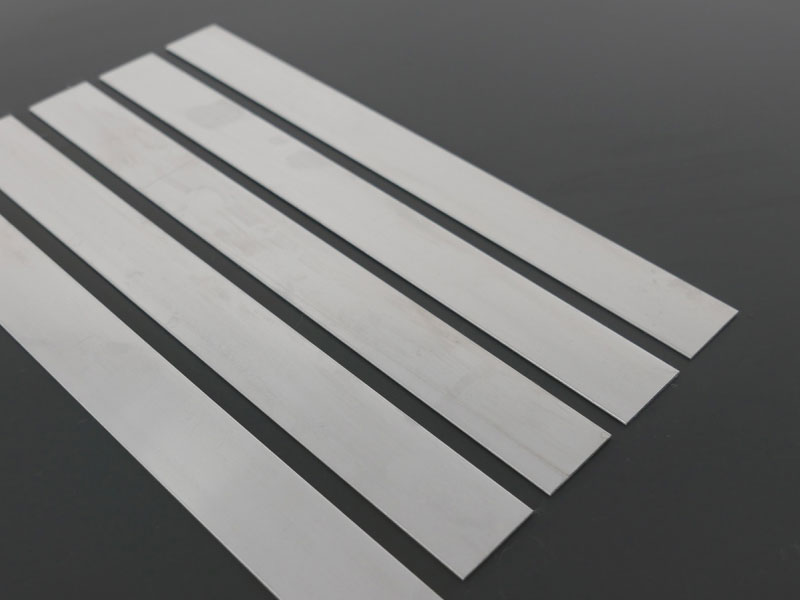

2), Radiator aluminium flat tube
Cladding layer: 4343, 4045
Core layer: 7072 anti-corrosion
Forming: high frequency welding
3), Water tank aluminium flat tube
Cladding type: single Cladding material, double Cladding material
Cladding layer: 4045, 4343, 7072 anti-corrosion layer, zinc can be added
Material Temper: H14;
Cladding rate: 10±2 or according to customer requirements
2, The introduction of Radiator materials(Radiator aluminium flat tube)
Cladding type: single Cladding material, double Cladding material
Cladding layer: 4045, 4343, 7072 anti-corrosion layer, zinc can be added
Material Temper: H14;
Cladding rate: 10±2 or according to customer requirements
Core layer: 3003, 3305
Production Process: high frequency welding, cold drawing
Wall thickness: 0.08-1.2mm
Appearance: can be customized according to customer requirements.
3.The Product Characteristics of Radiator aluminium flat tube:
1). light weight
2). easy welding
3). Good corrosion resistance
4). Good Voltage Resistance
5). Compliance with standard ROHS
6). High recycling value
7). Small deviation range
8). High surface quality
4, The usage of Radiator aluminium flat tube:
Radiator aluminium flat tube is mainly use for parallel flow condensers, car water tanks, new energy vehicles

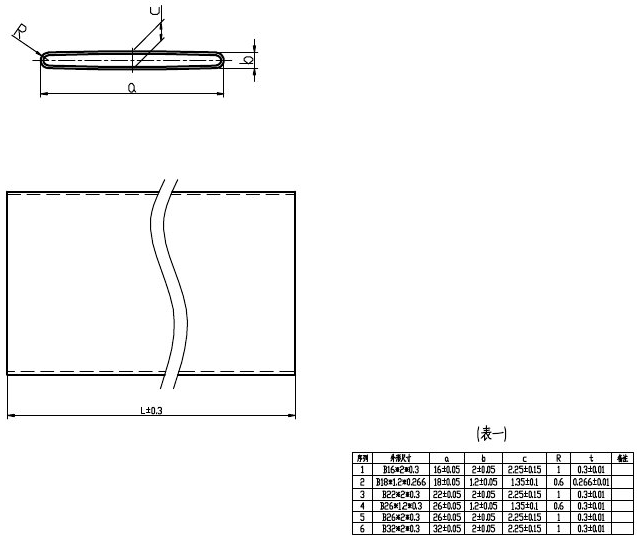

5,The tech requirements and common dimensions of the Radiator aluminium flat tube are shown as below:
1).The cutting end face burr does not exceed 0.1mm,and the inner wall weld line height does not exceed 0.2mm
2).Cutting end face angle 90°+/-2
3).The inner and outer surface of the pipe should be clean and free of foreign matter such as oil,dust and aluminum chips;no defects such as pressure pits,bumps,and scratches are allowed.
4).The length and material of the pipe are customized according to customer’s requirements
5).The existing specifications of our company are shown as below table
