Because of the evaporator D-Type pipe structure increases the heat exchange area, the heat exchange area increases, the evaporation temperature is increased, the cooling capacity is increased, the cooling capacity coefficient is increased, and the energy consumption is reduced.

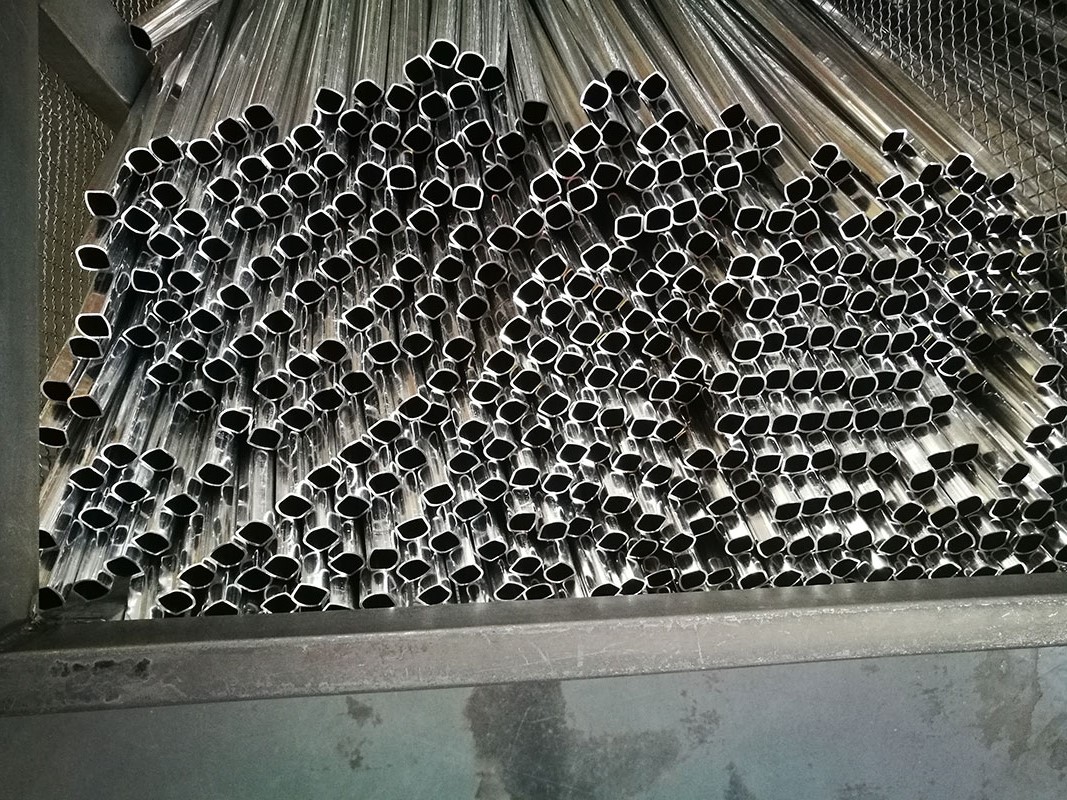

1, The Type of D-Type Condenser header aluminium pipe :
1) Punched Condenser Header Pipe
Cladding type: single Cladding material, double Cladding material
Material Temper: H14;
Cladding rate: 10±2
Wall thickness: 1-2.5mm
2) Condenser header pipe D-type
Cladding type: single Cladding material, double Cladding material
Core layer: 3003, 3305
Wall thickness: 1-2.5mm
2, The Introduction of D-Type Condenser header aluminium pipe
Cladding type: single Cladding material, double Cladding material
Cladding layer: 4045, 4343, 7072 anti-corrosion layers
Material Temper: H14,H18,or according to customer requirements;
Cladding rate: 10±2 or according to customer requirements
Core layer: 3003, 3305
Production Process: high frequency welding, cold drawing
Wall thickness: 1-2.5mm
Appearance: can be customized according to customer requirements.
