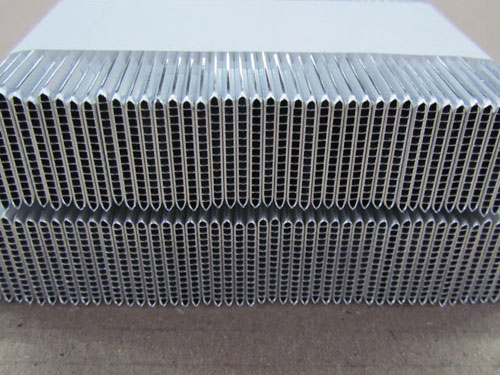

Acer micro channel aluminum flat tube is a new type of environmentally friendly refrigerant-carrying pipe component. It was first compulsorily used in automotive air-conditioning systems (EU regulation 1996, China regulation 2002). Due to its high technical content, this product is extremely difficult to produce. Due to the high technical content of acer micro channel aluminum flat tube, the production is extremely difficult. The minimum variety width is 12mm and the thickness is only 1mm, but it needs 12-16 holes. Its difficulties are mainly reflected in the following three aspects:
1.Extra large extrusion ratio
Extrusion ratio refers to the ratio between the cross-sectional area ofthe material before hot extrusion and the cross-sectional area after extrusion. Generally, it is 8-50 times, while the cross-sectional area of the acer micro channel aluminum flat tube is only about 4px2. Reaching more than 400 times, more than 8 times the limit of aluminum extrusion process.
2.Super high dimensional accuracy
The dimensional accuracy of acer micro channel aluminum flat tube is much higher than the national standard of "Hot Extrusion Tubes for Aluminum and Aluminum Alloy Research". According to national standards, the dimensional deviation of the width of a typical variety of 16mm is ± 0.3mm, and the deviation of the width dimension of acer micro channel aluminum flat tube is ± 0.03mm, even if the requirement is high, it must be increased to ± 0.01 ～ ± 0.02mm.
3.Air tightness
A set of micro-channel heat exchangers has about 50 to 150 acer micro channel aluminum flat tube. As long as one air-tightness defect (such as pores, inclusions, etc.) occurs, the entire air conditioner will be scrapped, so the quality standard is PPM (1 million Pieces), the measurement standard is below 15PPM.
